Product description
The FY-1*3 egg tray machine converts waste paper into eco-friendly packaging (1000pcs/h) through pulp molding. Ideal for eggs, fruits, and industrial trays, it reduces 30% carbon footprint vs. plastic. Customizable molds, semi-automatic operation, and low energy consumption (36kW) ensure cost-effective production.
 |
 |
 |
 |
 |
 |
 |
 |
 |
Semi automatic 1000pcs per hour egg tray making machine fruit tray egg tray carton machine
1000pcs per hour egg tray machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. Our egg tray machines select high quality electronic devices and pneumatic components and are fully designed by computer assistant engineering and high technology. It has been proven high efficiency, low maintenance and energy saving. There are various types and output of egg tray making machines can be supplied by our company You only can tell me what capacity machine do you want,our professional engineer will design the most suitable machine for you!
Working principle
Moulded pulp egg trays produce egg trays through the following steps:
1.Pulping: Put waste paper and water into a pulper and stir for 20 minutes to form pulp.
2.Molding: The pulp is injected into the molding machine by the pump, and the excess water is removed by vacuum adsorption and mechanical extrusion to form the shape of the egg holder.
3.Drying: Use hot air or natural drying to set the egg tray. Drying methods can be selected: box drying (suitable for small production egg tray machine), brick kiln drying and multi-layer metal drying.
4.After finishing: automatic stacking machine, hot press shaping machine, egg baler

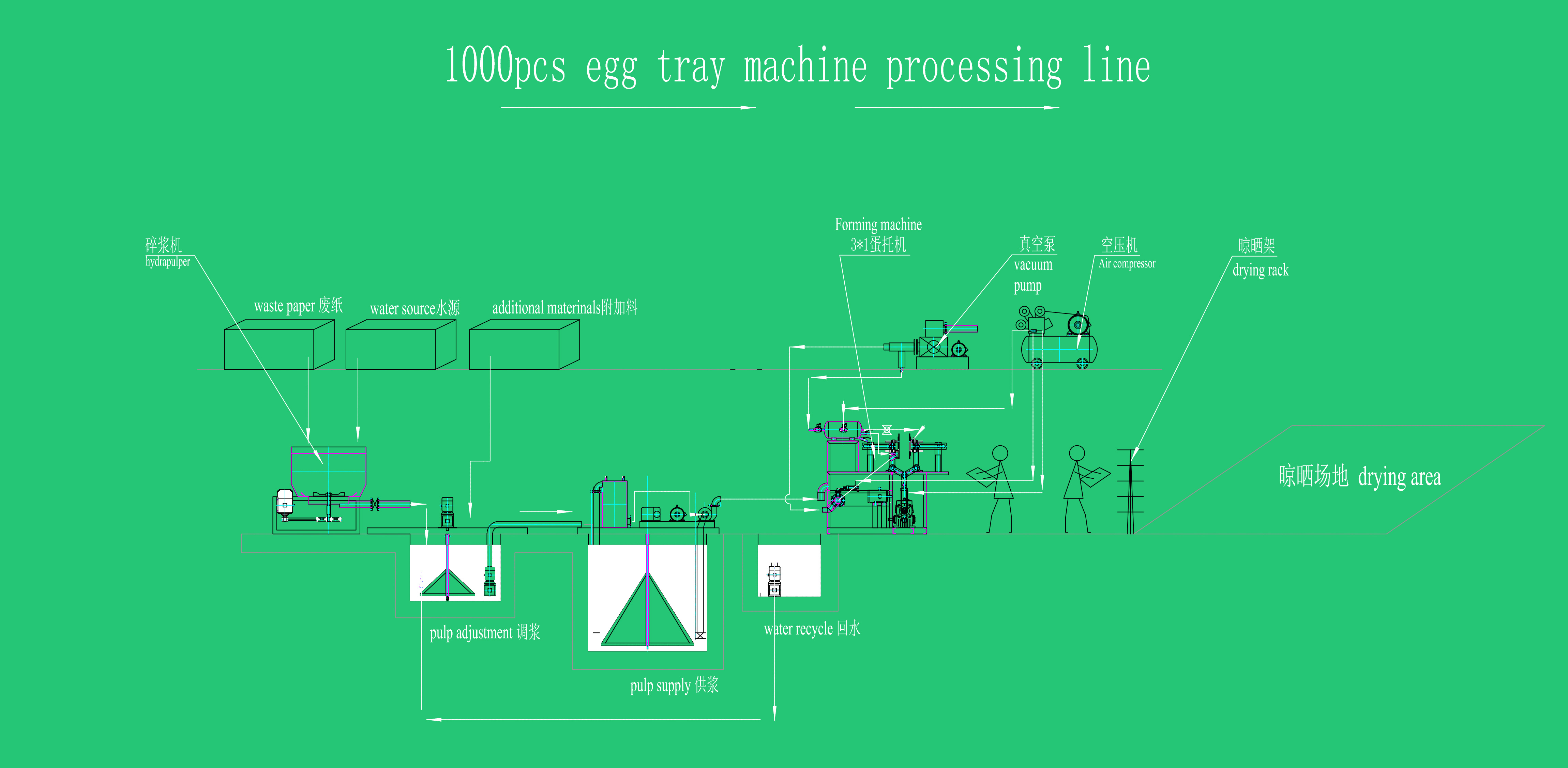

The egg tray machine production line mainly includes four system:
1.Pulping system
2.Forming system
3.Drying system
4.Finished product auxiliary packaging
Product features
1.Environmental protection: the use of waste paper or renewable pulp, degradable.
2.High efficiency: high degree of automation, high production efficiency.
3.Good protection: egg tray can effectively protect eggs.
4.Low cost: raw material for waste paper, low production cost.
Technical Parameters
| Machine Model | FY-1*3 |
| Processing Type | Pulp Molding Machine |
| Production Capacity | 1000 pcs/hour |
| Total Power | 36kw |
| Weight | 2800kg |
| Waste Paper | 70kg/h |
| Water | 140kg/h |
| Workshop Area | 100sqm |
| Voltage | 220v/380v |
| Raw Material | Any kind of waste paper like old newspaper, magazines, books,A4 paper etc |
| Mold material | Plastic or aluminium |
| Mould type | 6 cells,10 cells,12 cells,18 cells,30cells or customized |
| Drying way | Natural sun dryer |
| Finished Products | Egg Tray, Fruit Tray, Shoe Tray, Wine Tray,etc. |
| Quality standard | CE、ISO |
| Machine Model | FY-1*3 | FY-1*4 | FY-3*4 | FY-4*4 | FY-4*8 | FY-5*8 | FY-5*12 | FY-6*8 |
| Capacity(Pcs/h) | 1000 | 1500 | 2500 | 3000 | 4500 | 5500 | 6500 | 7000 |
| Power(Kw) | 36 | 42 | 58 | 64 | 120 | 128 | 168 | 198 |
| Workshop(m2) | 100 | 100 | 150 | 150 | 350 | 400 | 600 | 600 |
| Workers Required | 3 | 3 | 3-4 | 3-4 | 4-5 | 4-5 | 4-5 | 4-5 |
| Paper(Kg/h) | 70 | 105 | 175 | 210 | 315 | 385 | 455 | 490 |
| Water(Kg/h) | 140 | 210 | 350 | 420 | 630 | 770 | 910 | 980 |
Finished products show picture
Customer's visit
 |
 |
 |
 |
 |
 |
Product shipment
 |
 |
 |
 |
 |
 |
FY-1*3 Egg Tray Machine(1000 pcs/h)
Capacity: 1000 Pieces/Hour
Egg Tray Mould: Customized
Dryer: Natural Sun Dryer
Contact Us
Classification
Related Products
Capacity:360-400 pieces/hour
Mould:600*800
Dryer:Customized
Capacity:1200-1500 pieces/hour
Mould:600*800*2
Dryer:Customized
Certifications: ISO 9001:2008, etc.
Applications: waste paper pulping system
Suitable Molding Machine:FY-4*4
Mould Style:Customized
Mold Material:Aluminium
Customer FAQ
Do you offer after-sales service?
Yes, indeed! We provide comprehensive after-sales support:
▸ 24/7 Remote Technical Assistance: Our service team is always available to guide you.
▸ On-Site Engineer Visits: If needed, we can send our engineers to your location for installation and staff training. (Customer covers travel expenses.)
▸ Spare Parts Priority: We ensure you get replacement parts quickly.
What about the quality of your machines?
Our machines are built to high standards:
▸ Certifications: We hold ISO 9001:2015, CE, and TUV certifications.
▸ Rigorous Testing: Each machine undergoes extensive testing before leaving our factory, guaranteeing top quality.
Are your products certified?
Absolutely. All our products are ISO and CE certified. We have a dedicated quality control department to inspect every machine before shipment.
Are you a manufacturer or a trading company?
We are a professional OEM manufacturer, specializing in:
▸ Egg tray machines (1,000–8,000 pcs/hr)
▸ Tissue and napkin paper production lines
▸ Custom pulp molding systems
▸ Paper core and tube machines.
▸ Facial tissue machines.
▸ Toilet paper machines.
▸ Packing machines.
▸ Paper straw machines.
We have been serving customers in over 80 countries across Asia, Africa, and South America since 1984, and have a strong reputation worldwide.
What is the warranty on your machines?
We provide a 12-month warranty covering:
▸ Main machine structures
▸ Motors and gearboxes
(Note: Molds, belts, and proximity sensors are not included.)
What is the delivery time?
Our standard delivery time is 30 days.
Expedited Options:
▸ For 20-day priority production, a 15% surcharge applies.
▸ We offer FOB/CIF shipping from Qingdao Port.
Can I customize the FY-1*3 1000pcs/hr egg tray system?
Yes, you can! We offer customization options:
▸ Solar or gas-powered drying
▸ 1–4 forming molds
▸ PLC automation upgrades
What payment terms do you accept?
We offer flexible payment options:
▸ 30% deposit, 70% before shipment (TT)
▸ 100% LC at sight
▸ Negotiable installment plans.
