Product description
The pulp molding egg tray machine recycles waste paper into paper egg trays. It is primarily used for egg packaging and transportation, and can also produce egg cartons, cup holders, fruit trays, shoe trays, and industrial packaging trays. Due to its eco-friendly nature, the demand for pulp molding equipment is increasing, especially in the food packaging sector.
 |
 |
 |
 |
 |
 |

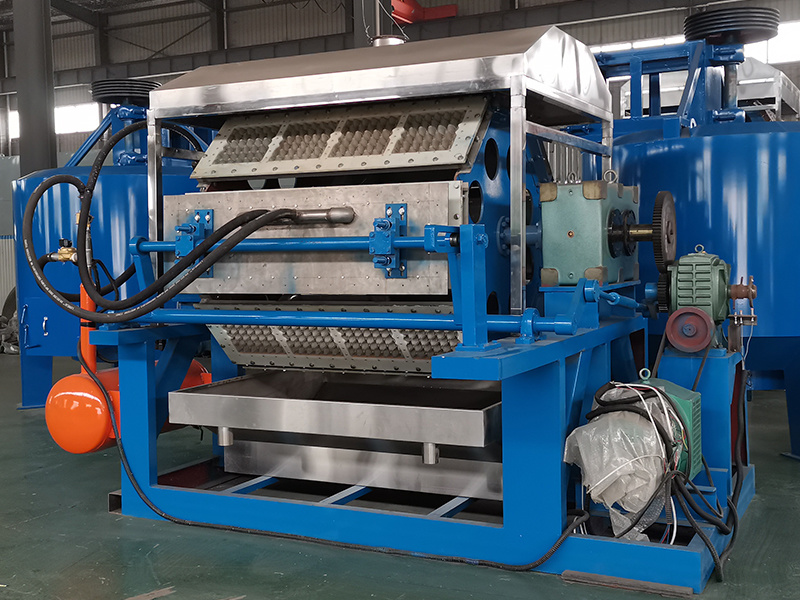

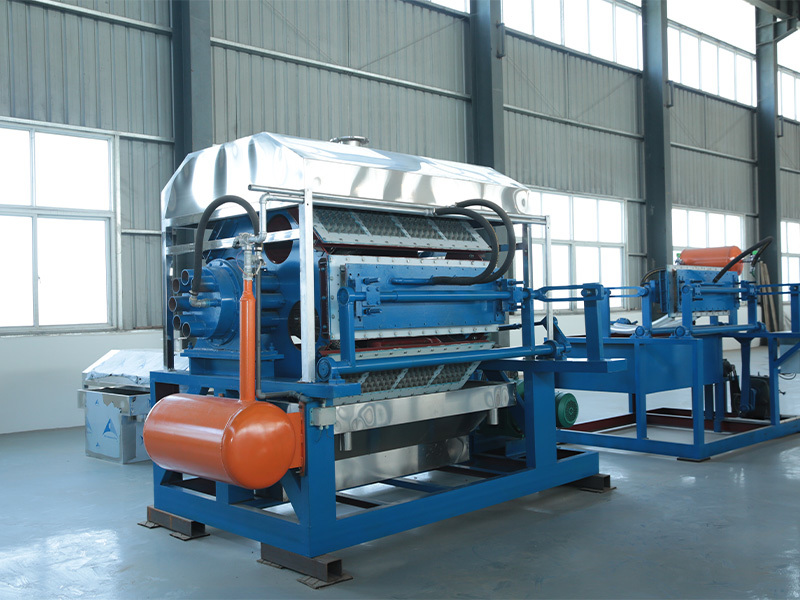

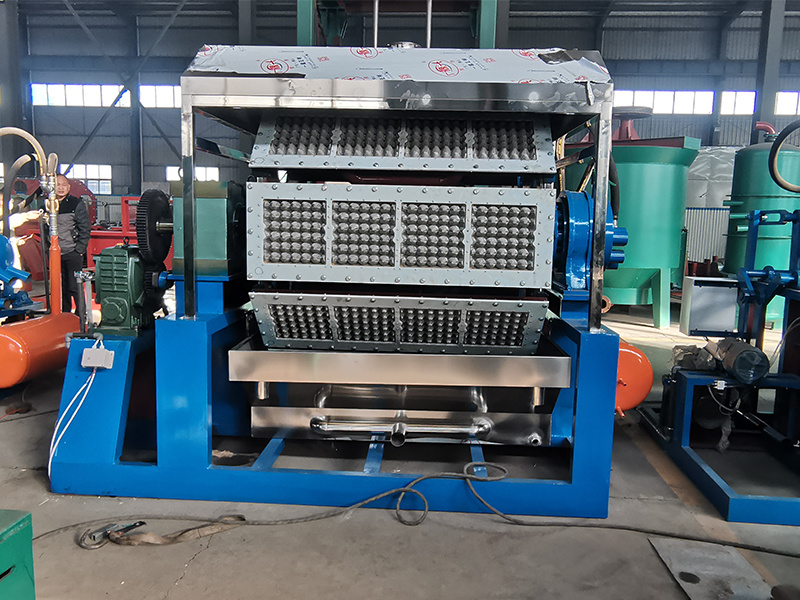

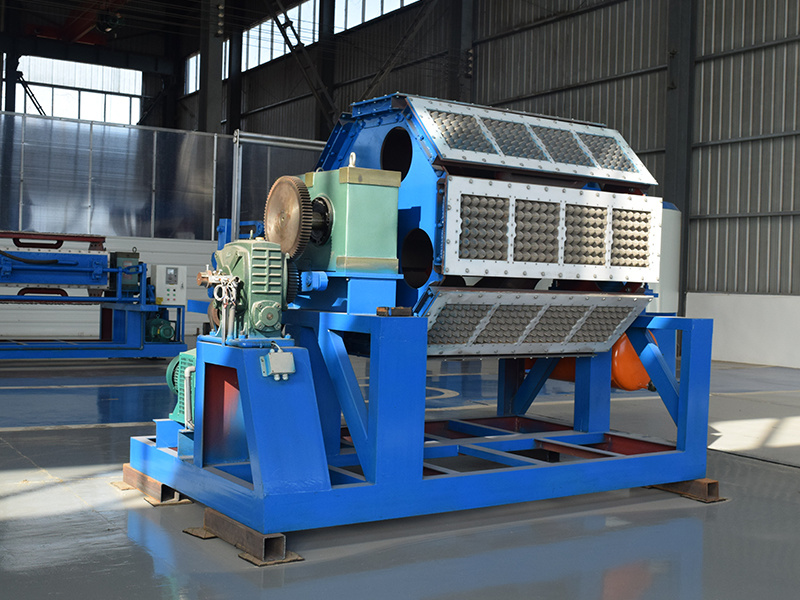

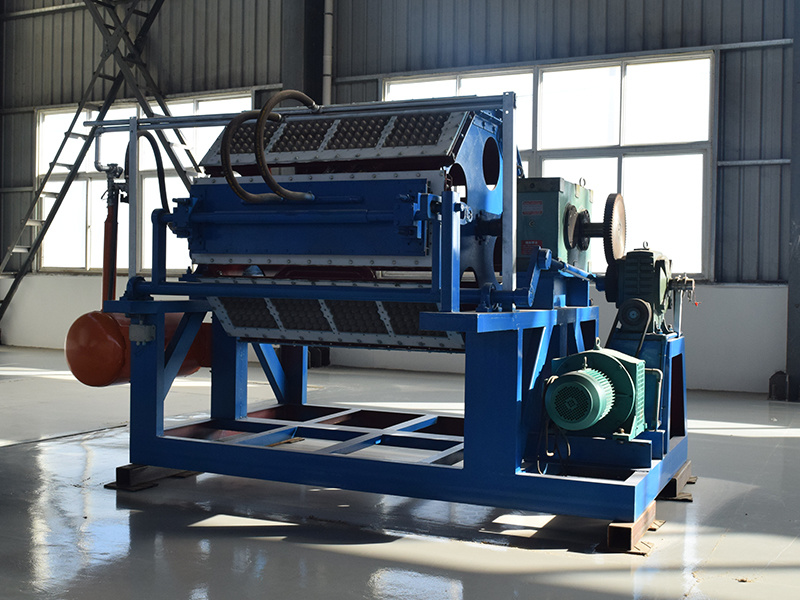

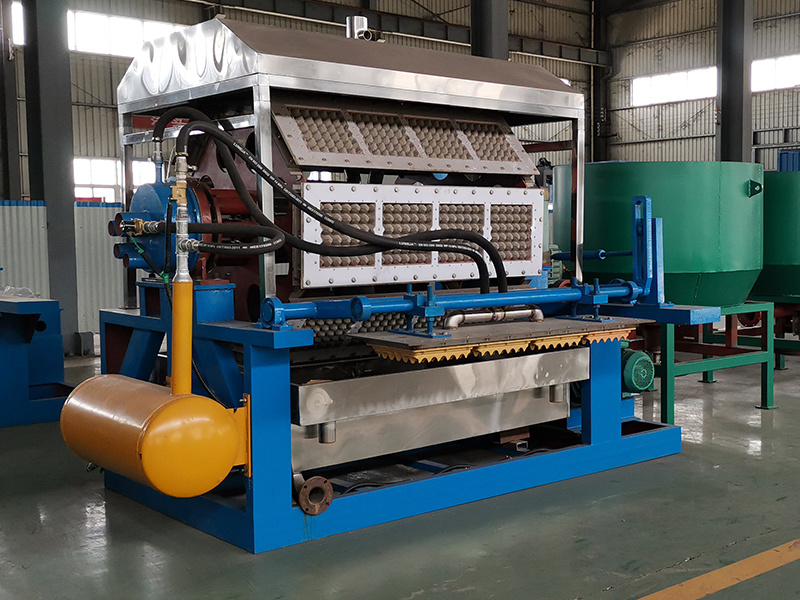

4000 pcs/hr Egg Tray/Carton Making Machine | Egg Tray Manufacturing System
The egg tray machine uses vacuum absorption to form paper pulp, the raw material, into various shapes on the mold by controlling the wet and dry ratio. Our machines utilize high-quality electronic and pneumatic components, designed with computer-aided engineering and advanced technology. They are known for high efficiency, low maintenance, and energy savings. We offer various types and capacities of egg tray machines, including 1000-1500 pcs/hr, 2000-3000 pcs/hr, 4000-6000 pcs/hr, and more. Simply specify your desired capacity, and our engineers will design the ideal machine for you.
Working principle

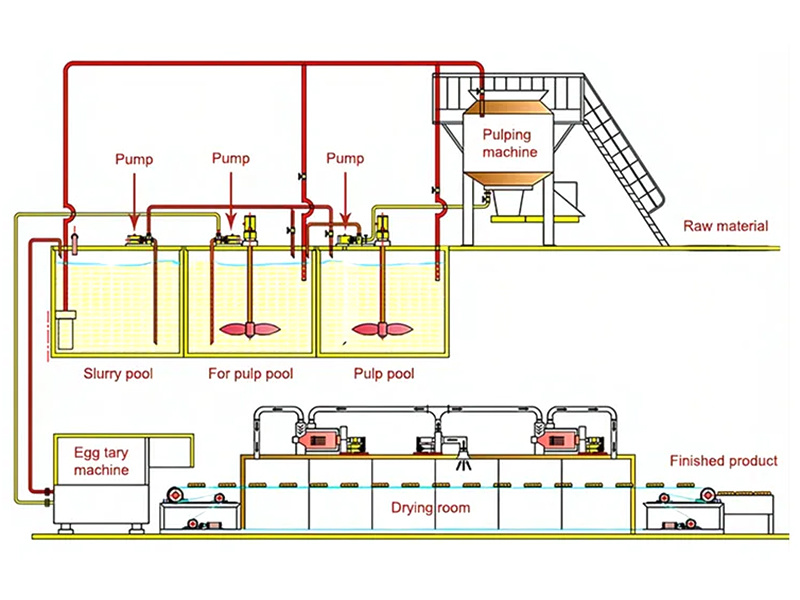

The molded pulp egg tray production process involves the following steps:

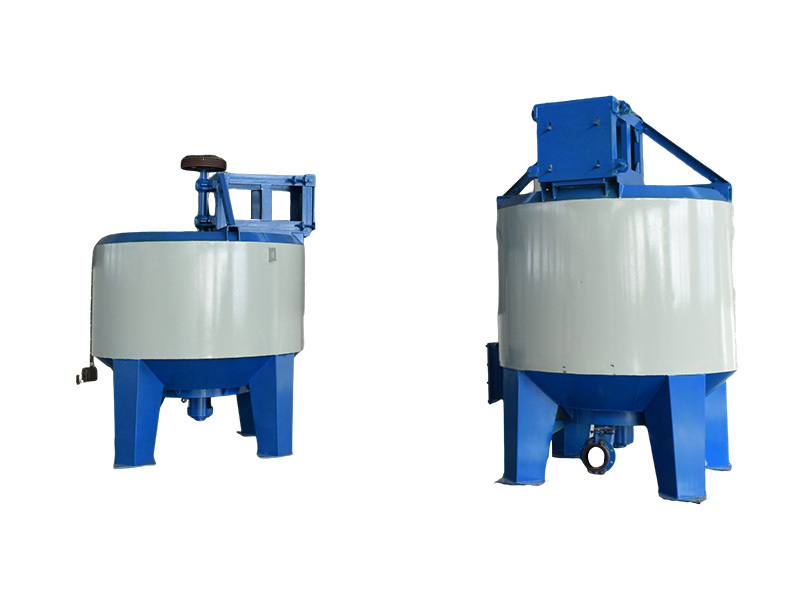

1.Pulping: Waste paper and water are mixed in a pulper for 20 minutes to create pulp.
2.Molding: The pulp is pumped into the molding machine, and excess water is removed through vacuum adsorption and mechanical pressing to form the egg tray shape.
3.Drying: Egg trays are dried using hot air or natural drying. Drying options include box drying (for small-scale production), brick kiln drying, and multi-layer metal drying.
4.Finishing: Optional finishing equipment includes an automatic stacking machine, hot press shaping machine, and egg baler.
 |
 |
The egg tray machine production line mainly includes four system:
1.Pulping System
2.Molding System
3.Drying System
4.Finished Product Packaging System
Product features
1.Eco-Friendly: Uses waste paper or renewable pulp, biodegradable.
2.High Efficiency: Automated operation, high production output.
3.Superior Protection: Egg trays provide effective egg protection.
4.Cost-Effective: Low raw material and production costs.
Technical Parameters
|
Model |
FY-4*8Egg Tray Machine (4500 pcs/hr) |
|
Processing Type |
Pulp Molding Machine |
|
Capacity |
4500 pcs/hr |
|
Total Power |
120kw |
|
Weight |
3500kg |
|
Labors |
4-5 |
|
Paper Consumption |
315Kg/h |
|
Water Consumption |
630 Kg/h |
|
Workshop Area |
350 sqm |
|
Voltage |
220v/380v |
|
Raw Material |
Waste paper, waste paper cartons, waste books, etc. |
|
Mold Material |
Plastic or aluminum |
|
Mould Type |
6 Cells, 10 Cells, 12 Cells, 18 Cells, 30cells or Customized |
|
Drying Method |
Natural drying, brick kiln drying, metal drying |
|
Finished Products |
Paper egg trays, egg cartons, fruit trays, wine trays, etc. |
|
Quality Standard |
CE, ISO 9001 |
|
After-Sales Service |
Video technical support, free spare parts, online support |
|
Machine Model |
FY-1*3 |
FY-1*4 |
FY-3*4 |
FY-4*4 |
FY-4*8 |
FY-5*8 |
FY-5*12 |
FY-6*8 |
|
Capacity(Pcs/h) |
1000 |
1500 |
2500 |
3000 |
4500 |
5500 |
6500 |
7000 |
|
Power(Kw) |
36 |
42 |
58 |
64 |
120 |
128 |
168 |
198 |
|
Workshop(m2) |
100 |
100 |
150 |
150 |
350 |
400 |
600 |
600 |
|
Workers Required |
3 |
3 |
3-4 |
3-4 |
4-5 |
4-5 |
4-5 |
4-5 |
|
Paper(Kg/h) |
70 |
105 |
175 |
210 |
315 |
385 |
455 |
490 |
|
Water(Kg/h) |
140 |
210 |
350 |
420 |
630 |
770 |
910 |
980 |

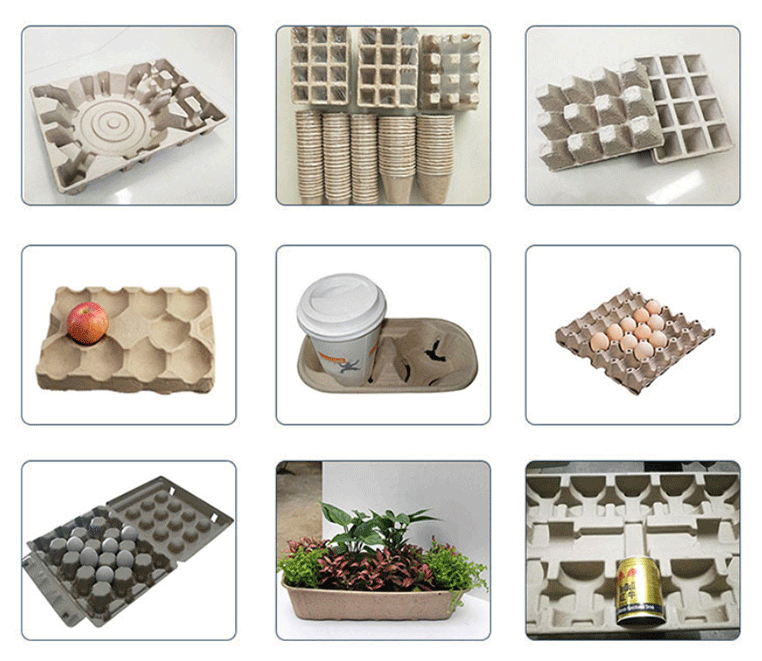

Finished products show picture
Customer's visit
 |
 |
 |
 |
 |
 |
Product shipment
 |
 |
 |
 |
 |
 |
Previous Page：
Next Page：
Keywords:
FY-4*8 Egg Tray Machine(4500 pcs/h)
Capacity:4500 pieces/hour
Egg Tray Mould:Customizable
Dryer:Natural Drying, Brick Kiln Drying, Metal Drying
Contact Us
Classification
Related Products
FY-5*8 Egg Tray Machine(5500 pcs/h)
Capacity:5500 pieces/hour
Egg Tray Mould:Customizable
Dryer:Natural Drying, Brick Kiln Drying, Metal Drying
FY-5*12 Egg Tray Machine(6500 pcs/h)
Capacity:6500 pieces/hour
Egg Tray Mould:Customizable
Dryer:Natural Drying, Brick Kiln Drying, Metal Drying
Certifications: ISO 9001:2008, etc.
Applications: waste paper pulping system
Hot Press Mould:Customized
Working pressure:0.55~~0.65MPa
Mold High:≤150mm
Capacity:1200-1500 pieces/hour
Mould:600*800*2
Dryer:Customized
Customer FAQ
Do you offer after-sales service?
Yes, indeed! We provide comprehensive after-sales support:
▸ 24/7 Remote Technical Assistance: Our service team is always available to guide you.
▸ On-Site Engineer Visits: If needed, we can send our engineers to your location for installation and staff training. (Customer covers travel expenses.)
▸ Spare Parts Priority: We ensure you get replacement parts quickly.
What about the quality of your machines?
Our machines are built to high standards:
▸ Certifications: We hold ISO 9001:2015, CE, and TUV certifications.
▸ Rigorous Testing: Each machine undergoes extensive testing before leaving our factory, guaranteeing top quality.
Are your products certified?
Absolutely. All our products are ISO and CE certified. We have a dedicated quality control department to inspect every machine before shipment.
Are you a manufacturer or a trading company?
We are a professional OEM manufacturer, specializing in:
▸ Egg tray machines (1,000–8,000 pcs/hr)
▸ Tissue and napkin paper production lines
▸ Custom pulp molding systems
▸ Paper core and tube machines.
▸ Facial tissue machines.
▸ Toilet paper machines.
▸ Packing machines.
▸ Paper straw machines.
We have been serving customers in over 80 countries across Asia, Africa, and South America since 1984, and have a strong reputation worldwide.
What is the warranty on your machines?
We provide a 12-month warranty covering:
▸ Main machine structures
▸ Motors and gearboxes
(Note: Molds, belts, and proximity sensors are not included.)
What is the delivery time?
Our standard delivery time is 30 days.
Expedited Options:
▸ For 20-day priority production, a 15% surcharge applies.
▸ We offer FOB/CIF shipping from Qingdao Port.
Can I customize the FY-1*3 1000pcs/hr egg tray system?
Yes, you can! We offer customization options:
▸ Solar or gas-powered drying
▸ 1–4 forming molds
▸ PLC automation upgrades
What payment terms do you accept?
We offer flexible payment options:
▸ 30% deposit, 70% before shipment (TT)
▸ 100% LC at sight
▸ Negotiable installment plans.
