Product description
Molded Pulp Packaging & Egg Tray/Carton Making Machine. Fuyuan offers a comprehensive range of over 100 specifications of pulp molding machinery, including high-quality egg tray production lines, molded pulp packaging lines, and other pulp molded product lines. We provide both fully automatic and semi-automatic production lines with varying capacities to meet diverse customer needs. Our company boasts complete facilities for product development, machine manufacturing, mold processing, and production process testing. We offer turnkey production lines, including equipment and molds, along with integrated technical services such as process support and personnel training. Upon purchasing our complete plant equipment, customers receive production process formulas and technical guidance to ensure successful mass production. Recommended Site Area: Production workshop 100 sqm, drying area 1000 sqm, warehouse 300 sqm or more. Suitable for producing various types of egg trays, egg cartons, shoe supports, fruit trays, and molded pulp packaging.
 |
 |
 |
 |
 |
 |
Working principle
The molded pulp egg tray production process involves the following steps:
1.Pulping: Waste paper and water are mixed in a pulper for 20 minutes to create pulp.

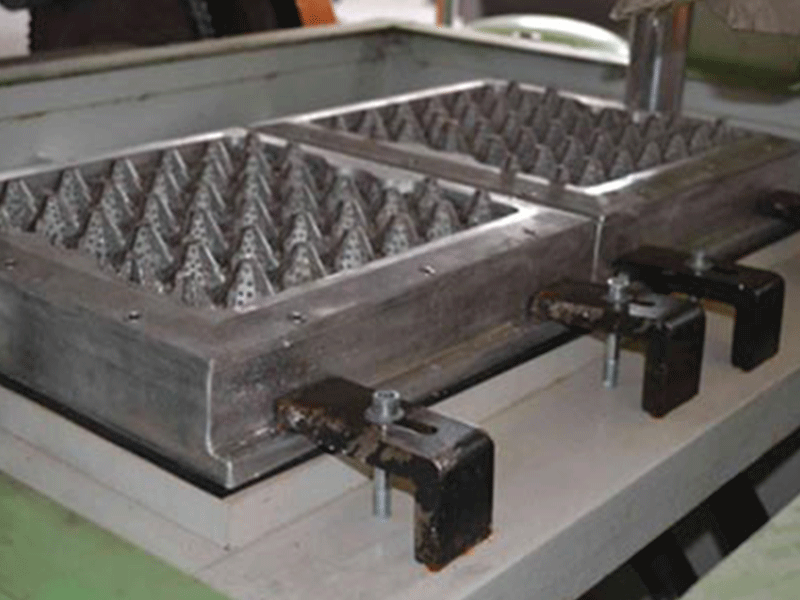

2.Molding: The bottom mold is lowered into the pulp slurry, and vacuum suction forms the egg tray shape on the mold surface. The bottom mold then rises and meets the reciprocating top mold, where mechanical pressing removes excess water to finalize the tray's form.
3.Drying: Egg trays are dried using hot air or natural drying. Drying options include box drying (for small-scale production), brick kiln drying, and multi-layer metal drying.
4.Finishing: Optional finishing equipment includes an automatic stacking machine, hot press shaping machine, and egg baler.
The molded pulp packaging production line mainly includes 4 system:
1.Pulping System
2.Molding System
3.Drying System

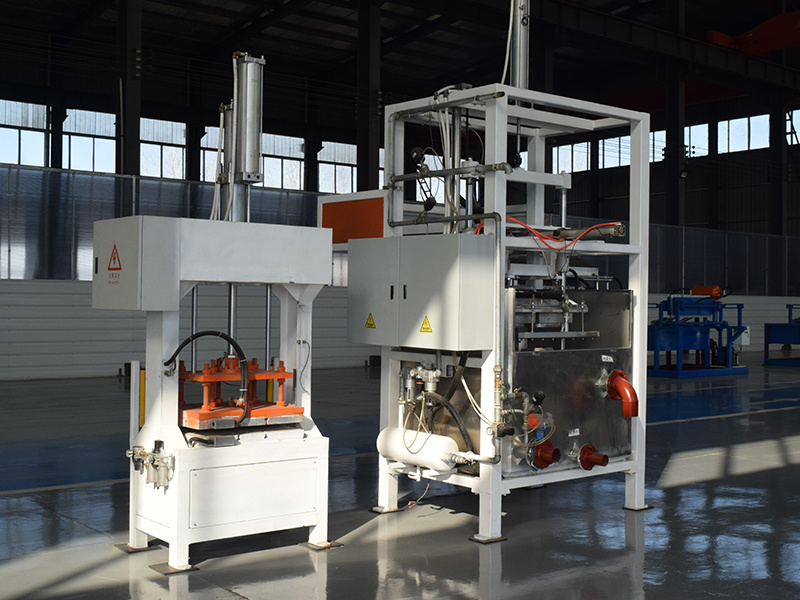

4.Hot Press System
Product features
Equipment Structure and Operation
1.Reciprocating Structure: The bottom mold moves vertically to absorb pulp, while the top mold moves horizontally to release products.
2.Automated Production and Transfer: Automatically transfers items to the drying line for subsequent processing.
Technical Parameters
1.Template Size: 450x1200 mm, capable of holding 6 sets of 30-cell egg tray molds.
2.Cycle Time: 12-18 seconds per cycle.
3.Capacity: 360-400 pieces per hour.
Control System
1.PLC Intelligent Computer Control: Features parameter setting, production planning, counting, and alarm functions, all accessible via a human-machine interface (HMI).
2.Automatic Mold Washing and Deburring.
3.Material of Pulp Bucket and Control Box: Made from SUS304 stainless steel.
4.PLC + Touch Screen HMI Operation.
5.Electronic Control Components: Inovance and CHNT brands.
6.Pneumatic Components: SMC/ARK brands.
Additional Benefits
Eco-Friendly: Utilizes waste paper or renewable pulp; products are biodegradable.
High Efficiency: Automated operation with high production output.
Superior Protection: Egg trays provide effective protection for eggs.
Cost-Effective: Low raw material and production costs.
Technical parameters
|
Model |
FY-R1 Pulp Molding Machine |
|
Processing Type |
Pulp Molding Equipment |
|
Production Capacity |
360-400 pcs/hour |
|
Total Power |
50 kW |
|
Weight |
3000 kg |
|
Waste Paper Consumption |
120 kg/hr |
|
Water Consumption |
300 kg/hr |
|
Workshop Area |
100 sqm |
|
Voltage |
220V/380V |
|
Raw Material |
Any waste paper (newspapers, magazines, books, A4 paper, etc.) |
|
Mold Material |
Plastic or aluminum |
|
Mold Size |
600*800 mm |
|
Drying Method |
Customizable |
|
Finished Products |
Molded pulp packaging, egg trays, fruit trays, shoe trays, wine trays, etc. |
|
Quality Standards |
CE, ISO |
Finished products show picture
Customer's visit
 |
 |
 |
 |
 |
 |
Product shipment
 |
 |
 |
 |
 |
 |

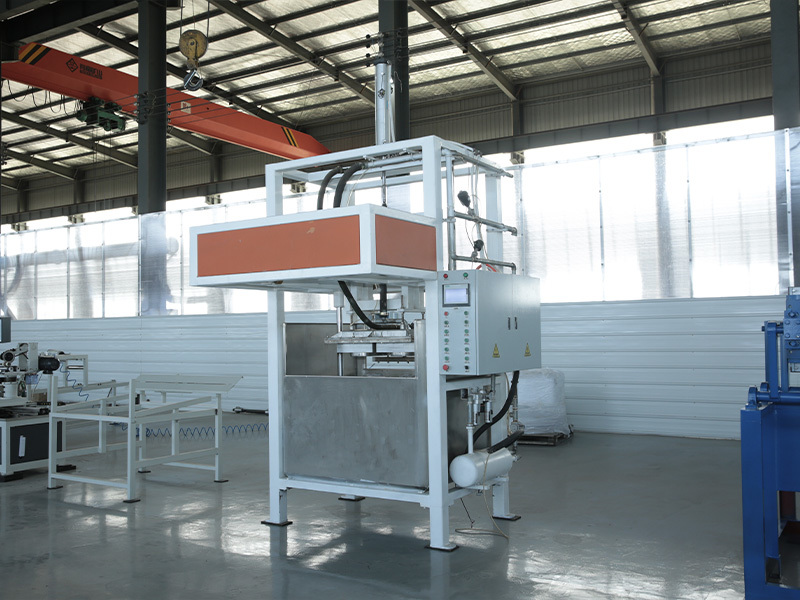

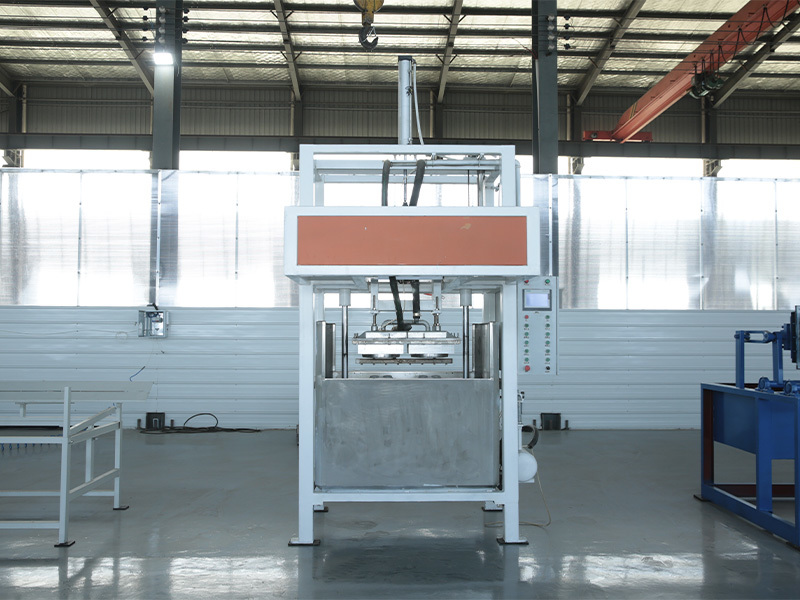

FY-R1 Pulp Molding Machine
Capacity:360-400 pieces/hour
Mould:600*800
Dryer:Customized
Contact Us
Classification
Related Products
FY-1*3 Egg Tray Machine(1000 pcs/h)
Capacity: 1000 Pieces/Hour
Egg Tray Mould: Customized
Dryer: Natural Sun Dryer
FY-1*4 Egg Tray Machine(1500 pcs/h)
Capacity:1500 pieces/hour
Egg Tray Mould:Customizable
Dryer:Natural Sun Drying
FY-3*4 Egg Tray Machine(2500 pcs/h)
Capacity:2500 pieces/hour
Egg Tray Mould:Customizable
Dryer:Natural Drying, Brick Kiln Drying, Metal Drying
Certifications: ISO 9001:2008, etc.
Applications: waste paper pulping system
Heat Source:Coal, biomass pellets, natural gas, electricity (optional)
Power Consumption:30–38 kW (includes fan and heating system)
